Corneal Analyzer

CA-800

Easy-to-Use Corneal Topography and Dry Eye Workstation. The CA-800 allows for complete evaluation of the anterior surface and tear related structures.

CA-800

Key features

  • Topography/ Fluorometry/ Pupillometry
  • Zernike analysis
  • Contact lens fitting simulation

CA-800 ease of use
The CA-800 is extremely easy to handle and use. From image acquisition to analysis, the onboard software is intuitive, user friendly and the 10.1 inch capacitive touchscreen provides quick navigation. Visual guidance
supports fast and easy alignment and focusing of the instrument; the “best image” selection modus automatically acquires the best focused image.

Contact lens fitting
The Topcon CA-800 is the perfect support for contact lens fitting. A simulation software is provided onboard including a complete contact lens database for all the main manufacturers (upgradable and customizable by the
user). The onboard fluorescein acquisition system allows full control of the contact lens position on the eye. Thanks to the onboard pupillometer the user can check the pupil position and diameter (from photopic to
scotopic condition) in relation to the position of the optical zone in Ortho-K or refractive surgery treatments.

Pupillometry, fluorescein & meibography


The Topcon CA-800 is a placido-based topographer with 24 rings that measures up to 6,144 data points, with axial and instantaneous curvature evaluation. Moreover, it is equipped with four infra-red LEDs and two white LEDs for dynamic and static pupillometry and eight blue LEDs for fluorescein images and videos to carry out full contact lens analysis. With the four infra-red LED’s meibomian glands can easily be analyzed for any possible defects.


meibography

Fast, comprehensive analysis of the cornea

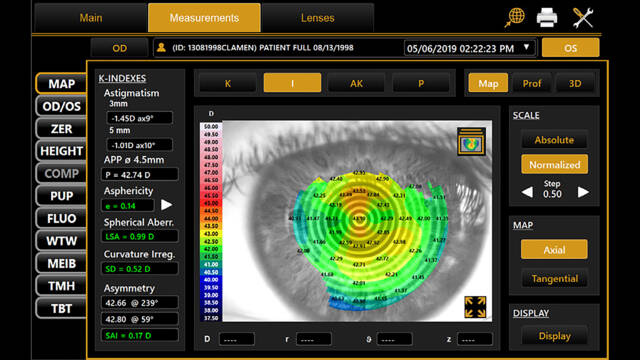

Curvature mapping

The CA-800 corneal analyzer is a comprehensive solution for evaluation of the anterior corneal surface. In addition to curvature mapping which can also be displayed in 3D, the instrument provides a complete analysis of the cornea including the keratoconus probability index and height map of the corneal surface. The Topcon CA-800 also provides fluorescein imaging and real time fluorescein videos for contact lens fitting.

corneal mapping

Non-invasive tear film analysis

The CA-800 offers a comprehensive analysis of the Tear Film by using the Blink Detection and Tear Breakup Time measuring modes. The Blink Detection automatically detects blinks and calculates the average blinks per minute and blinks interval. The Tear Breakup Time (TBT) records the patients tear film condition while they hold their blink and calculates the time of first breakup and average time for breakup of the Tear Film. This new feature allows video playback with a colored overlay to show the quality of the corneal surface and is extremely easy to interpreted using color coded sectors.

tear break-up time

Zernike analysis

The CA-800 can be used to perform Zernike analysis to evaluate any aberrations and deficiencies of the cornea. The CA-800 presents the curvature mapping of both the right and left eye at the same time on the display for
easy comparison, as well as comparison with previous measured results.

Zernike analysis

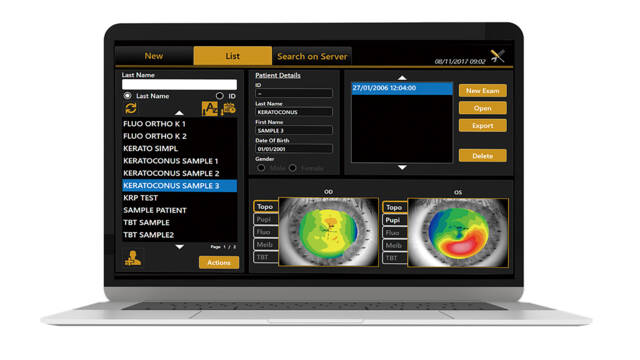

i-MAP for CA-800

The optional software i-Map enables delegation of acquisition to support staff while the clinician reviews the data in another room. i-Map allows full manipulation of the data. It contributes to optimizing your clinical
workflow.

iMap software

Not all products, services or offers are approved or offered in every market, and products vary from one country to another. Contact your local distributor for country-specific information.
